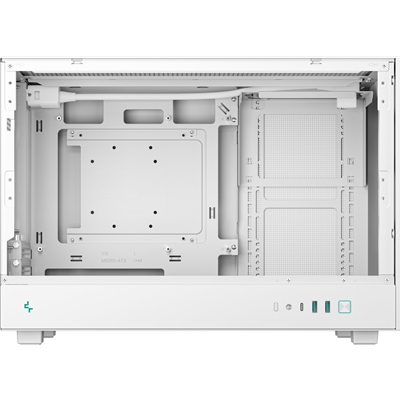

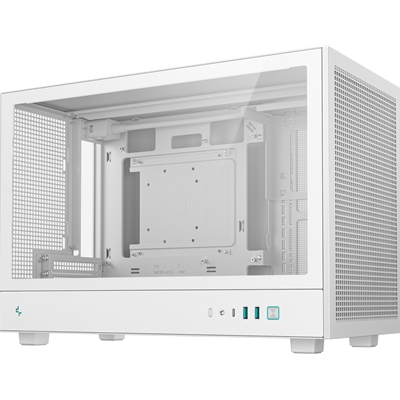

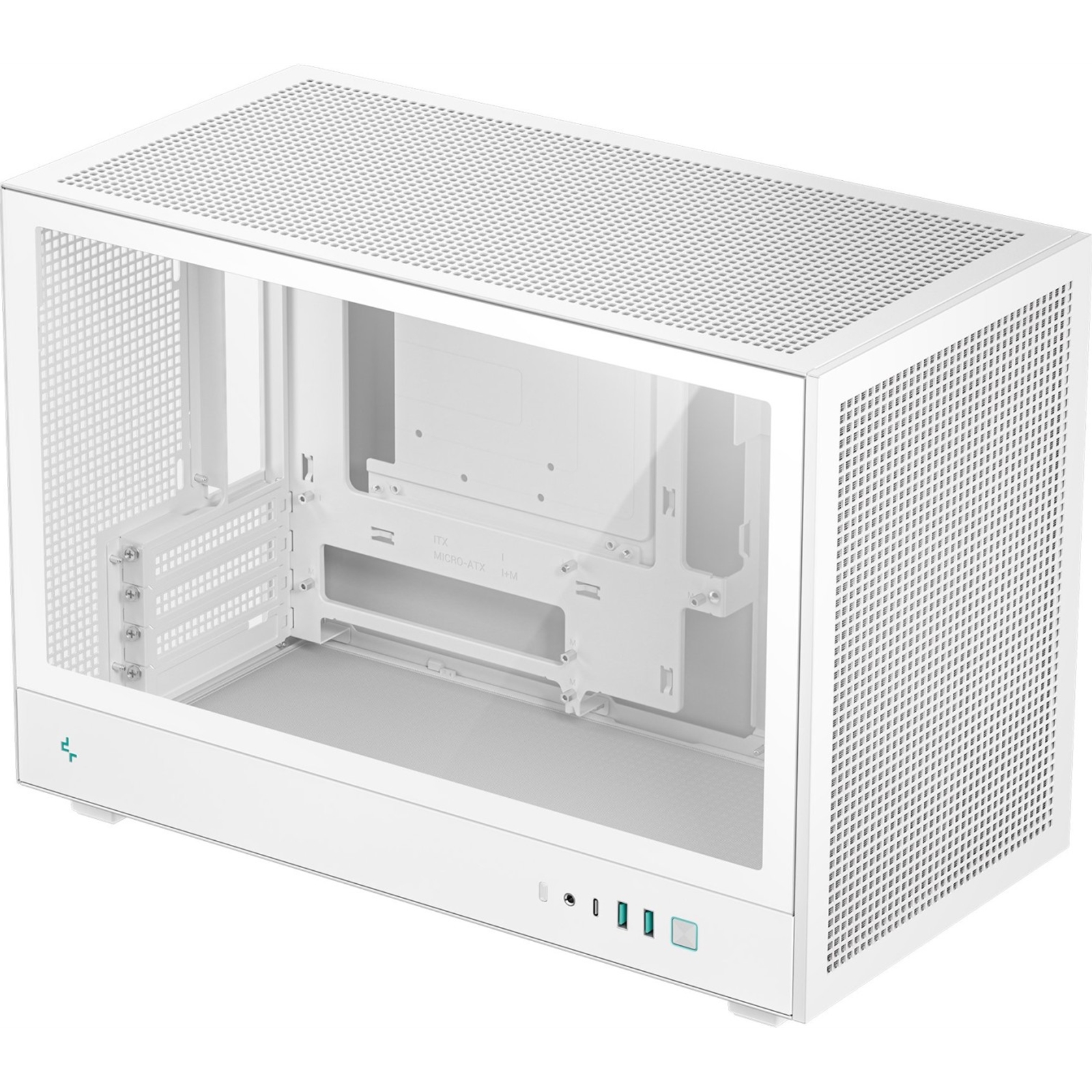

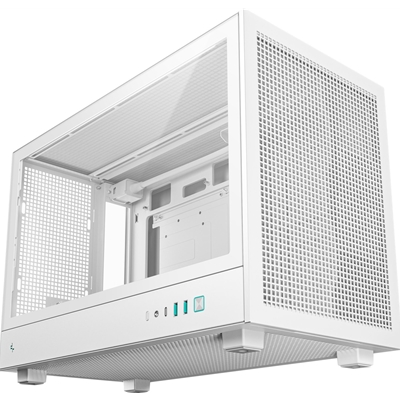

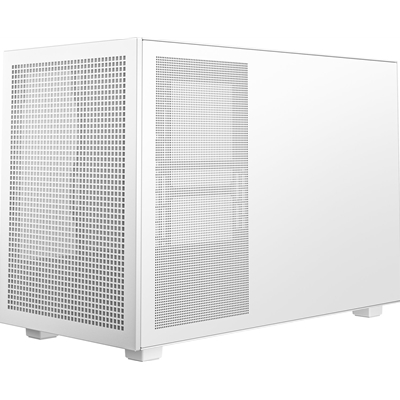

The DeepCool CH260 White is a compact Micro-ATX case designed to offer high airflow and versatile component compatibility. It features a sleek black design with a tempered glass side panel, allowing you to showcase your internal components. The case is equipped with full steel mesh panels on the front and top, ensuring optimal airflow to keep your system cool. The CH260 is an expanded version of the classic DeepCool ITX case CH160, capable of housing up to a Micro-ATX motherboard and supporting rear connector motherboards with a wider clearance of 29.6mm in the backplane.
Specifications
Product Dimensions:
438mm (L) x 225mm (W) x 312.5mm (H)
Net Weight:
5.3 kg
Materials:
ABS, SPCC, Tempered Glass
Motherboard Support:
Mini-ITX, Micro-ATX, Micro-ATX (Rear Connector)
Front I/O Ports:
USB 3.0 x 2
Gen2 Type-C x 1
Audio/Mic combo jack x 1
Drive Bays:
3.5″ Drive Bays: 1
2.5″ Drive Bays: 1
Expansion Slots:
4 slots
Pre-Installed Fans:
None
Fan Support:
Front: 2 x 120mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm
Radiator Support:
Top: 120mm / 240mm / 360mm
Rear: 120mm
CPU Cooler Height Limit:
174mm
GPU Size Limit:
388mm (with front fans) / 413mm (without front fans)
Power Supply Type:
ATX PS2 (maximum length: 150mm)
P/N:
R-CH260-WHNGM0-G-1
The CH260 White is designed to meet the rising demands for modern PC builds, offering multiple options for key components and ensuring efficient cooling with up to six 120mm fan placements.
