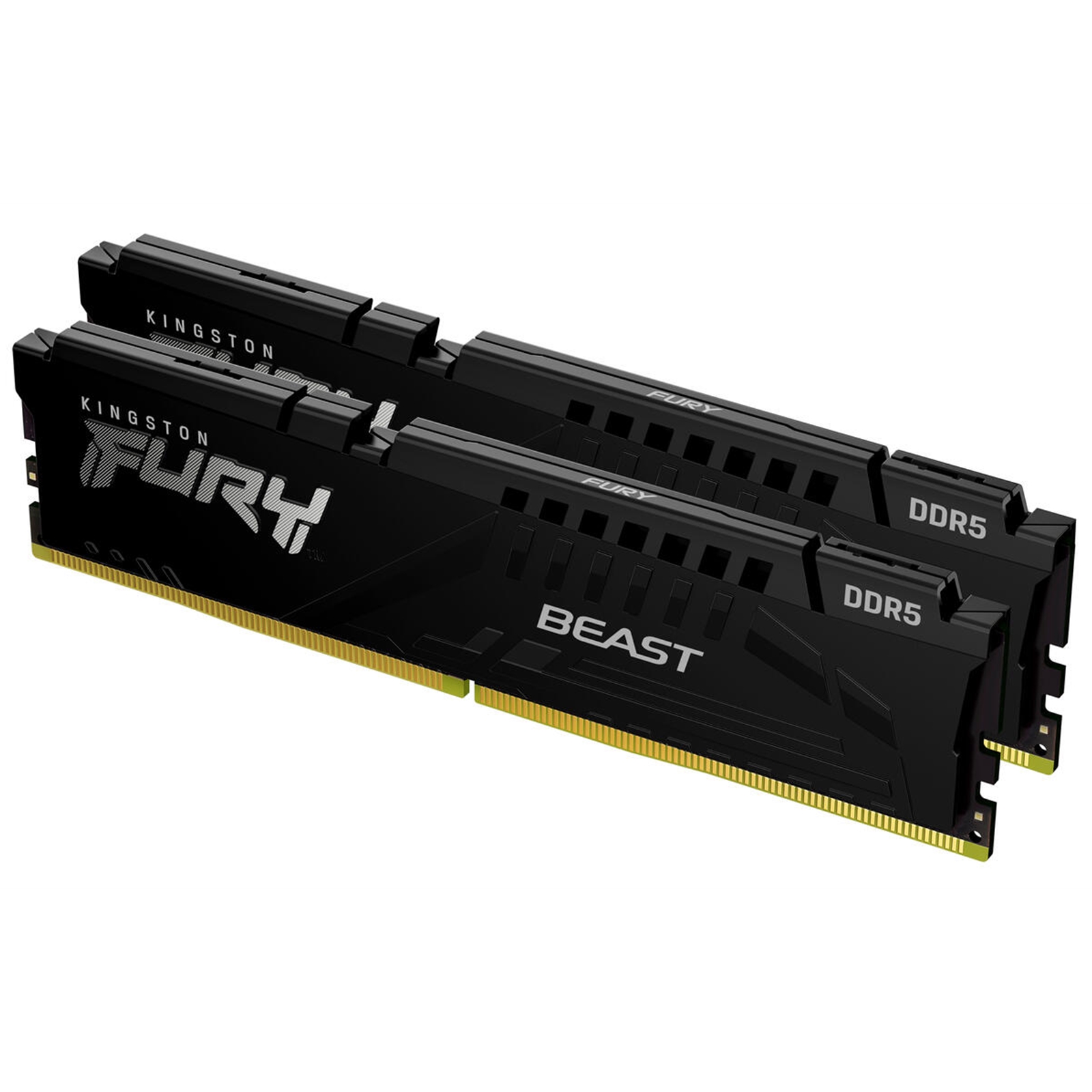

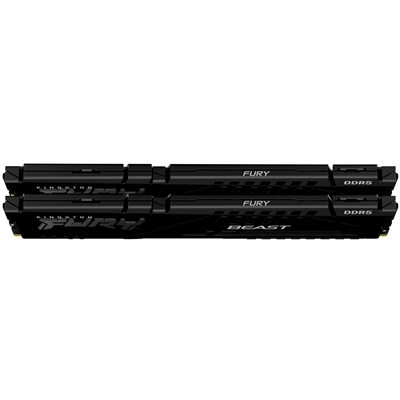

Kingston FURY KF564C32BBK2-32 is a kit of two 2G x 64-bit
(16GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 2G x 8-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory
Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each
module has been tested to run at DDR5-6400 at a low latency timing
of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
FACTORY TIMING PARAMETERS
Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V
XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
SPECIFICATIONS
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min)
Row Active Time (tRASmin)
32ns(min)
UL Rating
94 V-0
Operating Temperature
0-85
Storage Temperature
-55-100
