Ubiquiti UniFi Connect 21.5″ Full HD PoE++ Touchscreen – UC-Display
Key Features
Ultra-bright 21.5″ touch display
Display media, web pages, and Android apps with UniFi Connect
Included VESA mount adapter
Multiple mounting options
PoE++ in

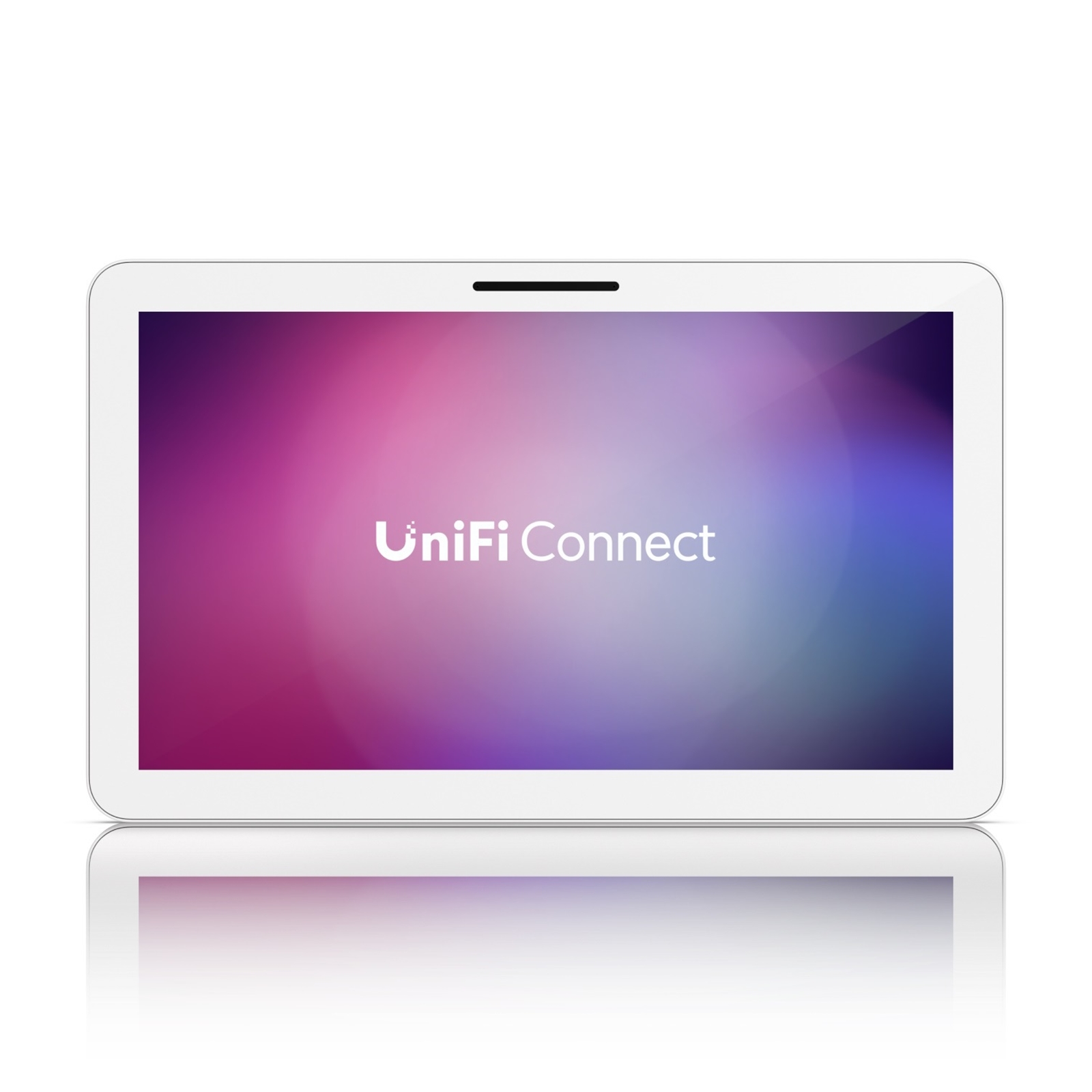

The Ubiquiti UniFi Connect Display (UC-Display) is a 21.5″ Full HD PoE++ touchscreen designed for UniFi Connect.

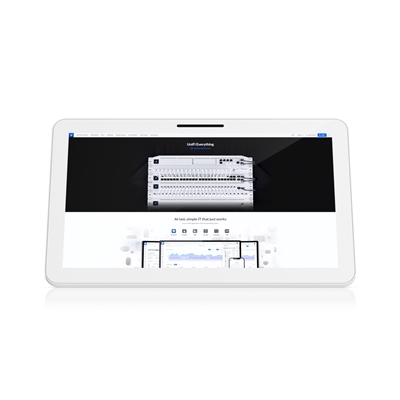

UniFi Connect Display features an ultra-bright touch display, capable of displaying media, web pages, and Android apps.

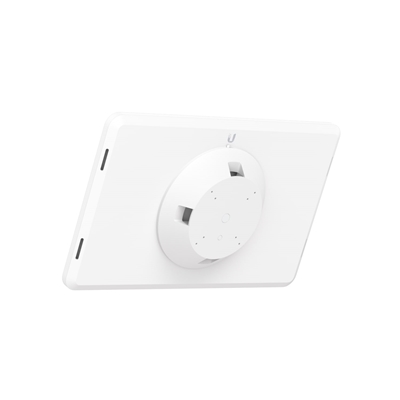

The UC-Display offers multiple mounting options, including a VESA mount adapter (included), and is powered by PoE++.
The UC-Display is an ideal solution for a range of professional UniFi applications.
Specifications
Mechanical
Weight & Dimensions
538.3 x 330 x 37 mm (21.2 x 13 x 1.5″)
4.9 kg (10.8 lb)
Enclosure material
Plastic, aluminum
Mounting
VESA mount adapter (included)
Table stand (optional)
Surface mount (optional)
Arm mount (optional)
Flush mount (optional)
Hardware
Display size
546 mm (21.5″) diagonal
Resolution
1920 x 1080 FHD (16:9)
Display luminance
250 nits (typical)
Touch screen technology
Capacitive multi-touch
Screen orientation
Portrait/landscape
Processor
Octa-core ARM Cortex-A53 at 2.2 GHz
MemoryStorage
32 GB
RAM
3 GB
Power input
PoE++
Power supply
UniFi PoE++ switch
Max. power consumption
27W
Connectivity
(1) GbE RJ45 port
(1) USB-C port (Reserved feature for future function update)
Bluetooth 4.2
Button
Factory reset
Microphone
Yes
Speaker
Yes
Operating temperature
0 to 40° C (32 to 104° F)
Operating humidity
20 to 90% noncondensing
Certifications
CE, FCC, IC
Software
Management application
UniFi Connect web: Version 2.1.14 and later
UniFi Connect iOS and Android: Version 1.0.0 and later
