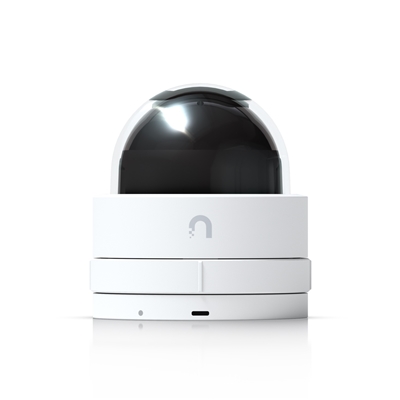

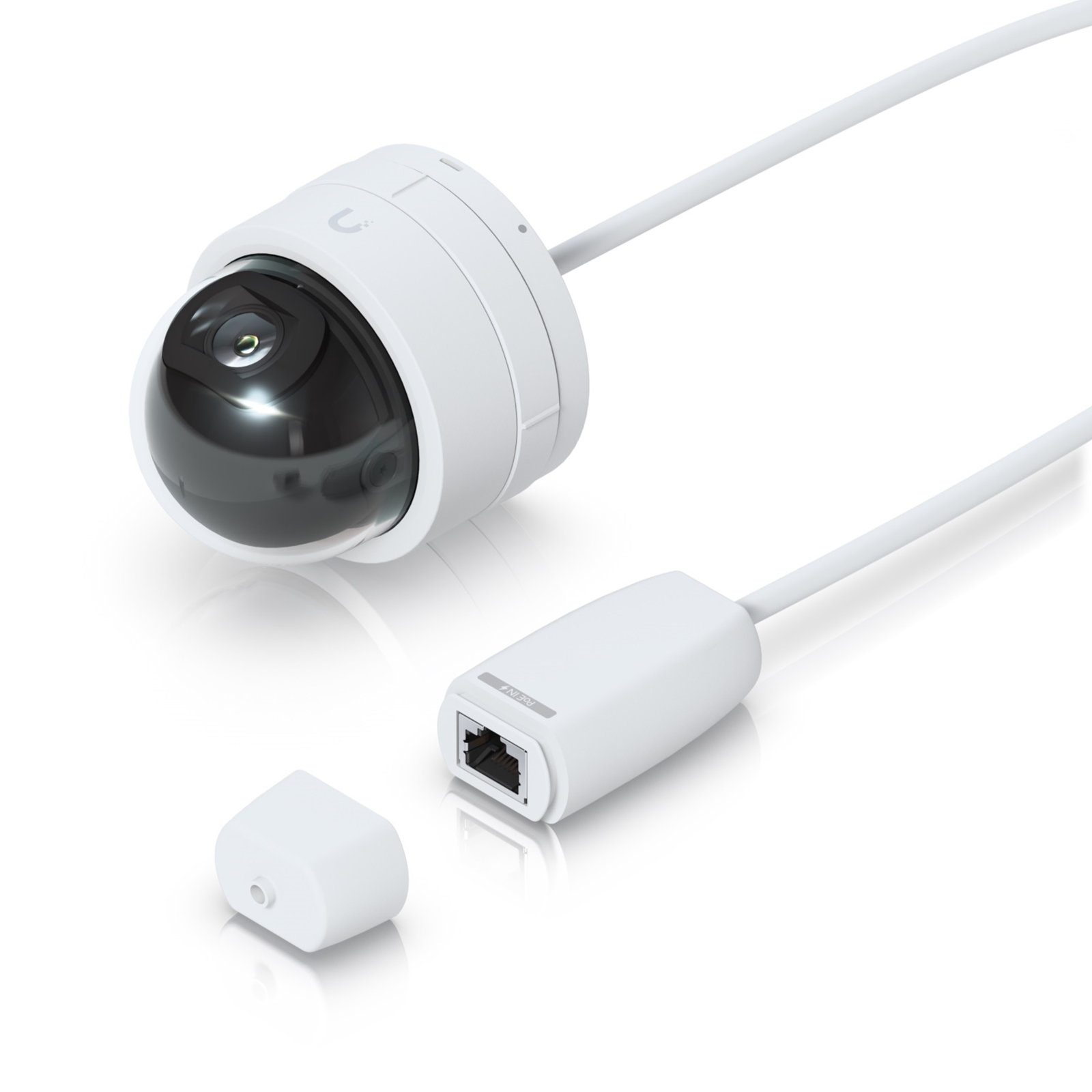

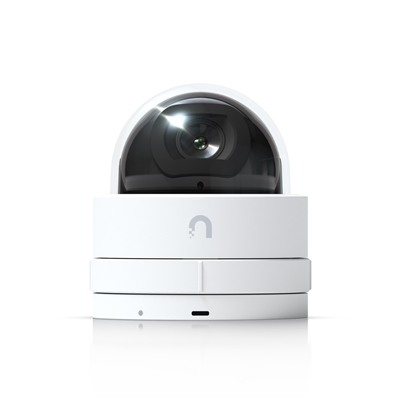

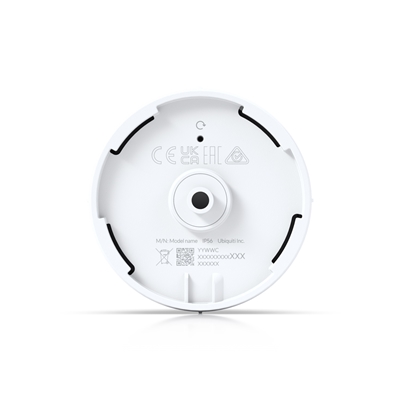

Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
2K (4MP) video resolution
Ultra-wide viewing angle (102.4 degrees)
20 m (65 ft) IR night vision
AI event detections
Connect and power using PoE
Optional Flush Mount for in-ceiling installation
Dimensions
dia63.6 x 68.2 mm (dia2.5 x 2.7″)
Weight
175 g (6.2 oz)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Stainless steel
Resistance
IK06
Sensor
1/2.4″ CMOS
Lens
Fixed focal length
View Angle
H: 102.4deg, V: 54.9deg, D: 120.6deg
Night Mode
Built-in IR LED illumination and IR cut filter
IR Distance
20 m (65 ft)
Resolution
4MP 2688 x 1512 (16:9)
Max. Frame Rate
30 FPS
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Processor
Dual-core Arm Cortex-A7 based chip
Networking Interface
10/100 MbE RJ45 port
Max. Power Consumption
4.2W
Power Method
POE
Supported Voltage Range
37–57V DC
Button
Factory Reset
Mounting
Surface Mount
Ambient Operating Temperature
-20 to 40deg C (-4 to 104deg F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
